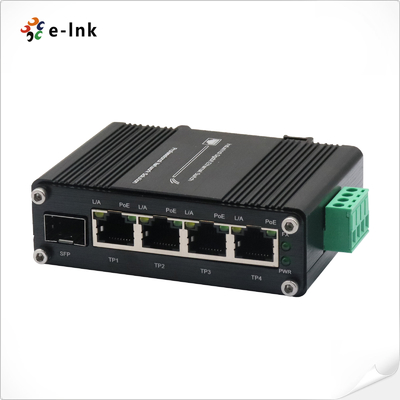

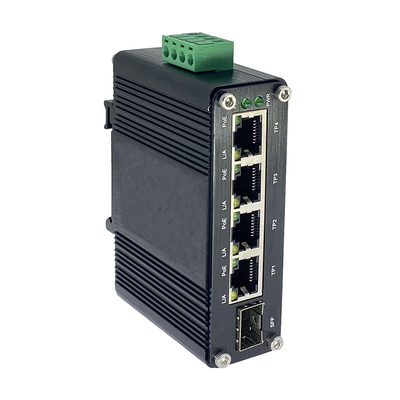

Mini 4-Port PoE + 1-Port SFP Industrial Ethernet Switch, 12~48VDC Voltage Booster

Großes Bild : Mini 4-Port PoE + 1-Port SFP Industrial Ethernet Switch, 12~48VDC Voltage Booster

Produktdetails:

Place of Origin:	China
Markenname:	E-link
Zertifizierung:	CE/FCC/Rohs
Model Number:	LNK-IMC104GP-SFP Series

Zahlung und Versand AGB:

Minimum Order Quantity:	1 pc
Preis:	US$29.9/pc
Packaging Details:	Industrial Ethernet Switch Standard export package
Delivery Time:	2-7 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Kontakt

Ausführliche Produkt-Beschreibung

Input Power::	12~48V DC (Terminal Block)	Power Consumption::	<125W (Non-PoE<6W)
Size:	95 x 70 x 29 mm	Mounting Options:	DIN-Rail / Wall-mount
Weight::	0.25Kg	Casing:	Aluminum Case
Hervorheben:	4 Port PoE Industrial Ethernet Switch , 12~48VDC Industrial Ethernet Switch

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch
with 12~48VDC Input and Voltage Booster

Overview

Mini Industrial 4-Port Gigabit PoE + 1-Port SFP Ethernet Switch with Voltage Booster

This compact unmanaged industrial Ethernet switch features 4 Gigabit PoE ports (802.3at) and 1 Gigabit SFP fiber port, powered by a wide-range 12~48VDC input with built-in voltage booster.

Engineered to meet stringent industrial standards, the switch offers robust performance against vibration, shock, and extreme temperatures. It is CE and FCC certified, and passes a full 100% burn-in test to ensure long-term reliability in harsh environments.

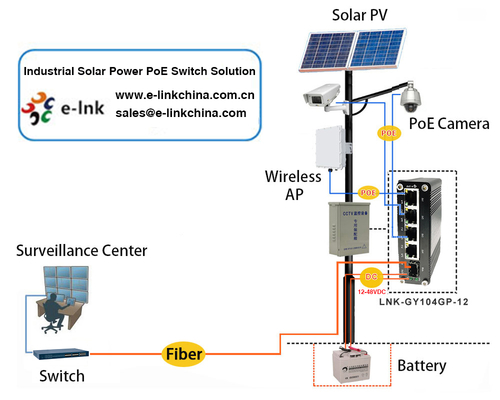

Ideal for industrial networking applications such as solar power systems, remote monitoring, transportation, and smart infrastructure, this switch delivers cost-effective and dependable Ethernet connectivity.

Features

► 100/1000BASE-X SFP slots for SFP type auto detection

► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

► 12~48VDC wide range power input with power booster function

► Supports 802.3x Flow control

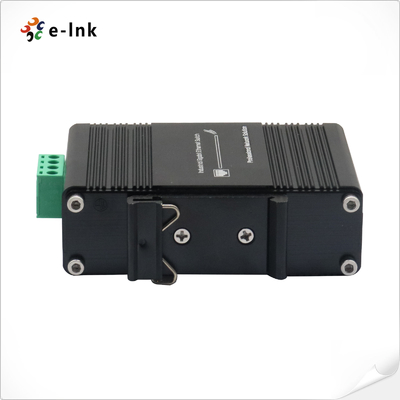

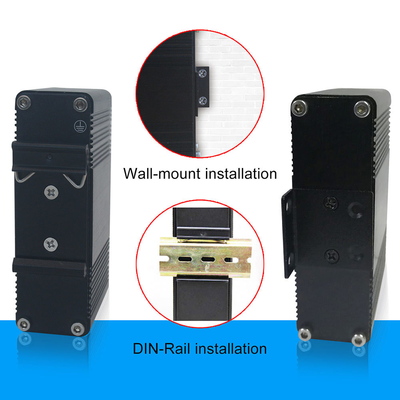

► Supports DIN-Rail and Wall-mount installation

► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
Interface
Connector:	4 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<125W (Non-PoE<6W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR:	Power
L/A:	Link/Activity
PoE:	PoE Status
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Order Information

Model	Description
LNK-IMC104GP-SFP	Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
