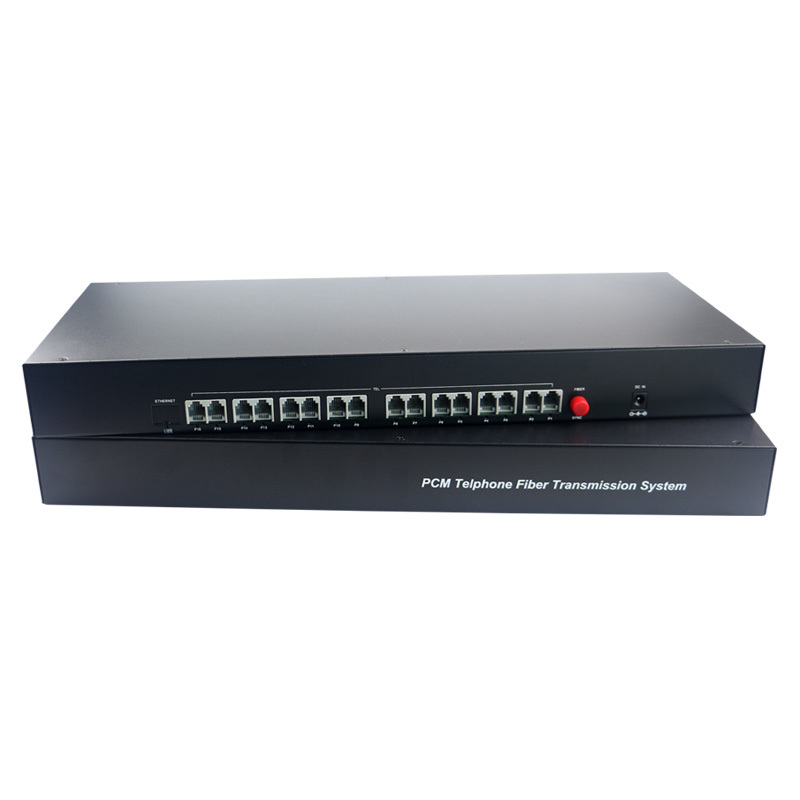

16Ch POTS(FXO/FXS)Telephone over Fiber Mux
16Ch POTS Telephone over Fiber Overview
The E-Link 16-Channel POTS over Fibre Converter is the ultimate high-density solution
for transmitting sixteen traditional telephone lines over a single optical fibre strand. This enterprise-grade
Voice over Fibre system maximises telecommunications efficiency while dramatically reducing
cabling infrastructure and costs. It uses standard RJ-11 connectors to integrate seamlessly
with existing copper pair wiring systems. The platform operates through matched FXO and FXS units:
the FXO interface connects directly to central office (PSTN) or PBX trunk lines and has complete ringing
voltage detection capability, while the reciprocal FXS unit connects to end-user telephone devices
and provides full dial tone and calling functionality. Designed for carrier-grade voice clarity
and complete immunity to electromagnetic interference, this robust extender is ideal for large-scale
voice service deployment in telecommunications central offices, multi-building corporate campuses,
hospital networks, government facilities and secure industrial complexes.
16Ch POTS Telephone over Fiber Features
- Standard RJ11 telephone interface for seamless connectivity
- 16 voice channels with support for Caller ID and Fax functions
- Dual voice port design (O port & S port):
- O port connects to the switch
- S port connects to the user’s telephone
- Compatible with FXO/FXS standard telephones
- Supports point-to-point, cascaded, and distributed networking without SNR degradation
- Fiber optic power link with LED indicators for system status monitoring
- Industrial-grade modular design provides flexible deployment, high reliability, and long-term durability
16Ch POTS Telephone over Fiber Technical Indexes
|
Product Name
|
16 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM16 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
16 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone,
telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 85°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
2.5w(Input:DC12V 3A)
|
|
Power supply
|
External power supply,
Input:AC110-160V 50/60Hz,
Output:12V 3A
|
16Ch POTS Telephone over Fiber Ordering Information
|
Model
|
Description
|
|
LNK-PCM16
|
Analog Telephone to F/O Converter: 16-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
|
LNK-PCM16-E
|
Analog Telephone to F/O Converter: 16-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
|
16Ch POTS Telephone over Fiber Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
