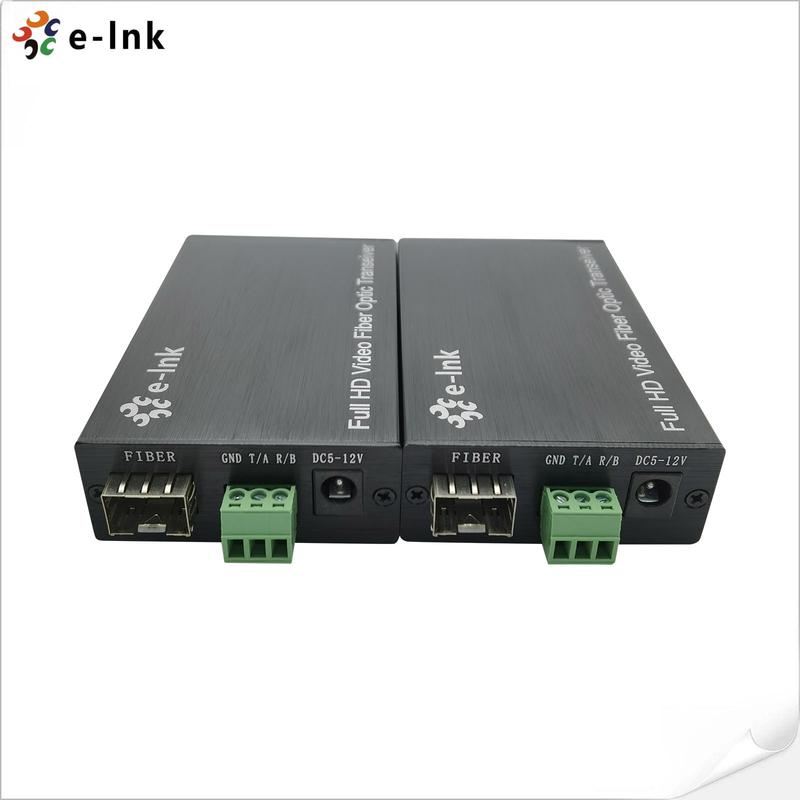

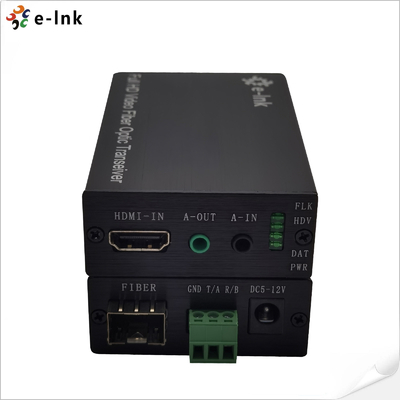

HDMI Bidi Audio RS232 Fiber Optic Extender Up to 20km 1080P@60Hz
Overview
The LNK-HF100DA HDMI Fiber Optic Extender transmits HDMI video, bidirectional stereo
audio, and RS232 signals over a single fiber optic cable. Supporting resolutions up to
1920×1200@60Hz, it ensures smooth, clear, and stable image quality over distances up to
20km. Fully compliant with HDMI 1.4b 3D and HDCP 1.4 standards, it features external stereo
audio ports, EDID support, automatic adjustment, and built-in ESD protection. Compact and
easy to install, it is ideal for long-distance, high-quality AV and control signal transmission in
professional applications.
Features
Transmits HDMI, bidirectional stereo audio, and RS232 over a single fiber cable
Supports resolutions up to 1920×1200@60Hz, including 1080P and 1600×1200@60Hz
HDMI 1.4b 3D and HDCP 1.4 compliant for wide device compatibility
Long-distance transmission: up to 500m (multi-mode) or 20km (single-mode)
External 3.5mm stereo audio interface for flexible audio integration
Built-in automatic adjustment for smooth, clear, and stable images
EDID support and ESD protection for reliable performance
Compact, lightweight design with simple plug-and-play installation
Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Standards
|
HDMI1.4B 3D; HDCP1.4
|
|
Maximum pixel clock
|
165MHz
|
|
Maximum data rate
|
6.75Gbps
|
|
Compliant
|
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,
720P@23.98/24/29.97/30Hz,
720P@50/59.94/60Hz
Special support 1600*1200 @60HZ
|
|
Connector
|
Female HDMI type A
|
|
Impedance
|
100Ω
|
|
HDMI Cable Range
|
<5Meter (Resolution up to 1920*1200@60Hz)
|
|
Audio
|
Interface
|
3.5MM external stereo audio
|
|
Transmitter
|
1Ch Input + 1Ch Ouptut
|
|
Receiver
|
1Ch Input + 1Ch Ouptut
|
|
RS232
|
Interface
|
3-Pin Terminal Block
|
|
Baud Rate
|
≤115200bps
|
|
Optical fiber
|
Interface
|
SFP model – LC connector
|
|
Fiber type
|
Single-mode
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
Interface bandwidth
|
3Gbps
|
|
Transmission distance
|
Transmission@1920*1200@60Hz
Multi-mode fiber: <500M
Single-mode fiber: 20km
|
|
IndexOther
|
Power supply
|
The power adapter: DC 5~12V
|
|
Power dissipation
|
MAX 4W
|
|
Temperature
|
Operating: -20℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension (LxWxH)
|
92 x 57 x 23 (mm)
|
Ordering Information
|
Model
|
Description
|
|
LNK-HF100DA
|
1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs
|
|
LNK-HF100DA-20
|
1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
|
