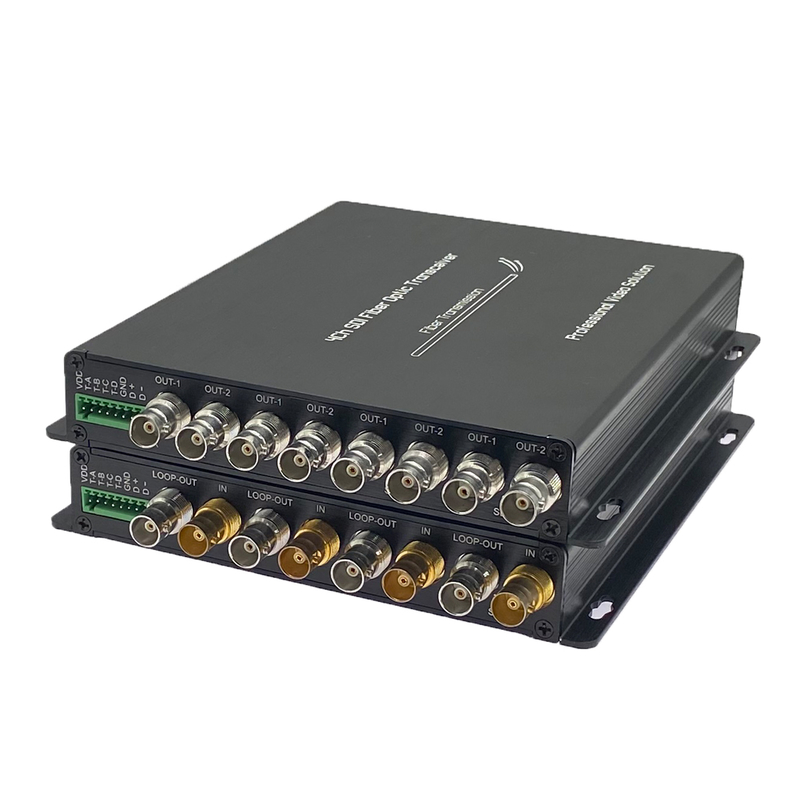

Name: 4-Channel 3G/HD-SDI Fiber Converter with Loop Output RS485 Tally 20km
Brand: E-link China Technology Co., Ltd.
SKU: LNK-3GSDI-4V1DT
Price: 670.00 USD
Availability: InStock

Place of Origin:

Guangdong, China

Markenname:

E-link

Zertifizierung:

CE, RoHS, FCC, ISO9001

Model Number:

LNK-3GSDI-4V1DT

Dokument:

1E-link Communication & Net...og.pdf

Minimum Order Quantity:

1 pair

Preis:

$545-$795

Packaging Details:

SDI to Fiber Optic Extender Standard Export Package

Delivery Time:

5-12working days

Payment Terms:

T/T,Western Union,MoneyGram,paypal,Credit Card

Supply Ability:

1000pcs/month

Video Input/Output:

4×BNC, 75Ω impedance

Loop Output:

4 channels

Fiber Type:

Single-mode, FC/UPC connector (SC/LC/ST optional)

Transmission Distance:

20km (optional distances available)

Data Interface:

1×RS485 (full/half duplex), 4×Tally

Power Supply:

DC 12V, 1A

Hervorheben:

20km SDI Fiber Converter

3G SDI Fiber Converter

Loop Output SDI Fiber Converter

Transmits 4-channel 3G/HD-SDI video over a single optical fiber

Supports loop output for each video channel

Integrated 4-channel Tally and bidirectional RS485 data

Uncompressed, broadcast-quality video up to 1080P 3G-SDI

Transmission distance up to 20km with single-mode fiber

Automatic cable equalization and reclocking for signal stability

Compatible with professional SDI camera systems

Robust design with wide operating temperature range (-10℃ to +55℃)

Technical Indexes

SDI Input	SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom
	270Mbit/s - 1.48Gbit/s – 3Gbit/s
	Input number: 4
	Reflection loss: >15DB
	Equilibrium: 0-150m @3Gb/s
	Connector: BNC
Optics	Channel: 1
	Type: single-mode
	Transmission distance: 20km (Other distance Optional)
	Reflection loss: > 15dB
	Dithering: < 0.2UI
	Connector: FC/UPC (SC, LC, ST optional)
SDI Output	Output number:4
	Signal level: 800mV nominal
	Rise/fall time: 200ps indication
	Overshoot: < 10% amplitude
	Reflection loss: >15dB
	Dithering: < 0.2UI
	Connector: 75Ω BNC
Data	1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester
	Max. 57600bps for RS485
	Connector: Industrial standard screw terminal
	4Ch Tally: A, B , C, D
Power and environmental indication	Operating temperature: -10℃～＋55℃
	Power Input: 1A@12VDC
	EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
	Average time trouble-free: >100000 hours
SDI video format supports	625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;
SDI video format supports

Ordering Information

LNK-HDSDI-4V1D4T	4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-4V1D4T	4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs

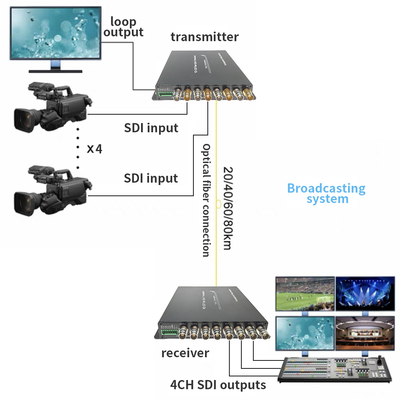

Application

hd SDI zum Faseroptikkonverter,

hd SDI Faseroptikübermittler und -empfänger,

SDI Konverter zum aus optischen Fasern
